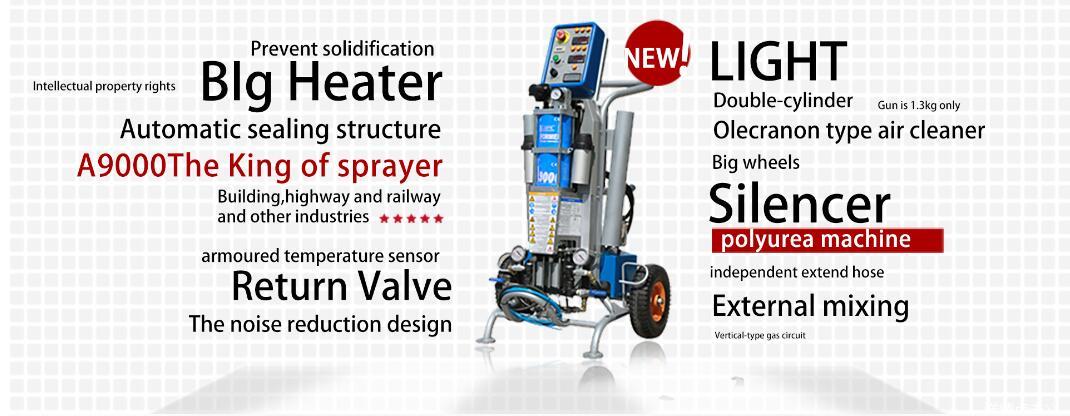

Portable polyurethane/polyurea spray equipment JHPK-A9000MINI

+
  • c4f58a45-e0fd-4644-826e-ea7d23a49580._290xaf.png
  • CIXzpsu3QzygRfI1GE7j6A.png
  • fKT6u_EeTD65r4pHhs4Q6w.png

编号 :

JHPK-A9000MINI

Product
description

  • 产品描述
    • Commodity name: Portable polyurethane/polyurea spray equipment JHPK-A9000MINI
    • Commodity ID: JHPK-A9000MINI



    Portable polyurethane/polyurea spray equipment

    JHPK-IIIB235



    Product Introduction

    The equipment can be applied in the fields of architecture, highway, railway, automobile, watercraft, mining petroleum, electrical industry, food industry and etc.;

    Having the complete independent intellectual property rights in design and production, several key techniques have applied national patents. Super power with high efficient heating function can meet applications requirements with different materials and have multi-use of one machine;

    Fully pneumatic controlled , simple structure ,reliable operation ,it can be operated without electricity .

    The unique protection design for the black material anti-solidification and reset function when shut down realizes the dual protection for the shaft of the booster pump.

    The lifetime of the equipment is greatly enhanced with the application of the high-performance dynamic and static sealing material and the design of the adjustable self-compensation sealing structure;

    Straight platoon-type gas path and external pneumatic integrated control system makes the operating action fast and sensitive with low fault rate and is convenient for inspection and maintenance;

    The delicate coupling structure enables the power transmission steady and reliable avoiding the adverse effects to the pump shaft due to the concentricity problem.









    Standard Configuration:

    Main equipment: 1 set
    Spray gun: 1 piece
    Heating pipe: 15 meter
    3m pipe connecting to the gun: 1 set
    Feeding pump: 2 sets
    Spare parts : 1 set
    Tools : 1 set
    English manual: 1 set
    Package: plywood tray


    Shipping Parameter:

    Dimension: 1000mm*1000mm*1550mm
    Weight: 150Kg

    Technical Parameter

    Proportion of raw material: 1:1~2:1
    Viscosity range of raw material: 200-1000 CPS
    Output of raw material: 2~6.8L/ min
    Compressed air: 0.5~0.8Mpa(70~120psi) ≥ 0.9m3/min
    Output pressure of raw material 5~10Mpa (700~1500psi)
    Max. length (optional): 45m









    Process / case







    Company Profile



    JHPK company's main products are polyurethane spraying machine, polyurea spraying machine, polyurethane foaming machine, polyurethane pouring equipment, polyurethane spraying equipment, polyurethane foaming material, polyurethane black and white material, polyurethane resin pultrusion equipment, epoxy resin pultrusion equipment, unsaturated Resin pultrusion equipment, broken bridge aluminum doors and windows filling equipment, polyurethane packaging equipment, feed pump, polyurethane spray gun, polyurethane insulation pipeline, polyurethane road maintenance and lifting equipment, automatic spraying equipment, laboratory polyurethane equipment, tube-in-tube foaming equipment, intelligent two-component spraying equipment, etc.










    FAQ



    Are you a factory? How large is the area?
    headquartered in Beijing, the production center moved
    to Weinan New District in Hebei in 2018; the production center covers an
    area of 63,000 square meters, about 100 acres.
    Is your equipment imported?
    The mechanical equipment produced by Jinghua Parker is composed of
    spare parts processed by the processing center imported from the United
    States, zero-matched by the domestic brand processing center, and
    Siemens, Schneider and other internationally renowned brand accessories.
    It is a pure domestic equipment and a national brand.
    Overseas sales are an important channel for sales of Jinghua Parker
    products, so the appearance of the equipment is relatively good-looking
    and is in line with the world.
    Equipment? Is it installed at home?
    Free delivery, free on-site installation and commissioning training services
    for customers in China; free export packaging services for export
    equipment
    Why is the product of Jinghua Parker recognized by the market/word of mouth?
    Because Jinghua Parker starts from the procurement of high-quality raw
    materials, independent processing of spare parts, strict implementation
    of quality inspection system, traceable finishing process, perfect product
    display and after-sales service of online and offline process
    communication, the customer is the core only to build A good
    mechanical device.
    Are your parameters accurate?
    Jinghua Pike's flag is against the improper behavior of some friends to
    exaggerate the parameters of the virtual standard equipment!
    Jinghua Parker rejects the virtual standard, and the parameter data of
    the products sold are all measured real data.
    I am using it abroad, can the voltage be changed?
    Yes, Jinghua Parker equipment is sold at home and abroad, covering
    more than 70 countries on five continents.
    How long is the warranty?
    One year, our service policy is comprehensive quality assurance, lifelong service



    Contact information





    Mobile:        0086-13801200210
    Phone:      400-888-9616
    After-sales service:    031-05079803
    Postcode:      102609
    Mail Box:      equipment@jhpk.net
    ProductionCenter:   China Electronic Science and Technology Park, Hunnan New District, Hebei Province
