    Two-components high pressure polyurethane injection equipment

    JHPK-DPT-20



    Product Introduction

    JHPK-DPT-20,high pressure polyurethane injection foaming machine is suitable for patching and injection process to various buried pipelines, storage tanks, solar energy, site construction insulation and pipejoints.

    JHPK-DPT-20 is a new motivated electric high pressure foaming system.

    1.The system adopts the most advanced SBP technology which efficiently gurantees the stablility for fluid flow pressure of the raw material and enables more even mixture for the two-components raw material.

    2.The compact and simple optimization structure for the injection gun makes it possible for the easy-worn parts to be near zero.Full electric control ,without air compressor equipped and over-length piping connection makes it more convenient mobilization at construction site

    3.The humanization operation platform makes the equipment operation simpler and can be handled by anybody. This foaming system is the most advanced and durable foaming machine for the medium and small flow rate injection foaming field in present domestic market.It will create more generous benefits for you



















    Standard Configuration:

    Main equipment: 1 set
    injection gun: 1 piece
    transfer pumps : 2 pics
    Heating pipe: 15 m (50ft)
    Spare parts : 1 set
    Tools : 2 set
    English manual: 1 set
    Package: plywood tray





    Dimension: 900mm×600mm×1200mm
    Weight: 150Kg

    Technical Parameter

    Ratio of raw materials: 1:1~1:5
    Viscosity range: 200~1000cps
    Heating power: 1000W*2
    Heating temperature range: 0℃~90℃(32°F~194°F)
    Heating range Three phase five wires, 380V, 50Hz
    Power source: 0.5~0.8Mpa(70~120psi) 0.8m3/min
    Air source 5~15Mpa(725~2200psi)
    Optional pipe per group 15m(50ft)

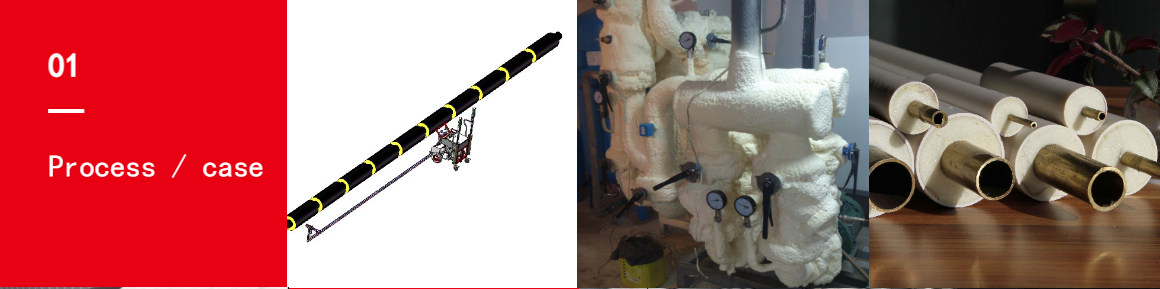

    Process / case





    Company Profile





    JHPK company's main products are polyurethane spraying machine, polyurea spraying machine, polyurethane foaming machine, polyurethane pouring equipment, polyurethane spraying equipment, polyurethane foaming material, polyurethane black and white material, polyurethane resin pultrusion equipment, epoxy resin pultrusion equipment, unsaturated Resin pultrusion equipment, broken bridge aluminum doors and windows filling equipment, polyurethane packaging equipment, feed pump, polyurethane spray gun, polyurethane insulation pipeline, polyurethane road maintenance and lifting equipment, automatic spraying equipment, laboratory polyurethane equipment, tube-in-tube foaming equipment, intelligent two-component spraying equipment, etc.










    FAQ



    Are you a factory? How large is the area?
     headquartered in Beijing, the production center moved
    to Weinan New District in Hebei in 2018; the production center covers an
    area of 63,000 square meters, about 100 acres.
    Is your equipment imported?
    The mechanical equipment produced by Jinghua Parker is composed of
    spare parts processed by the processing center imported from the United
    States, zero-matched by the domestic brand processing center, and
    Siemens, Schneider and other internationally renowned brand accessories.
    It is a pure domestic equipment and a national brand.
    Overseas sales are an important channel for sales of Jinghua Parker
    products, so the appearance of the equipment is relatively good-looking
    and is in line with the world.
    Equipment? Is it installed at home?
    Free delivery, free on-site installation and commissioning training services
    for customers in China; free export packaging services for export
    equipment
    Why is the product of Jinghua Parker recognized by the market/word of mouth?
    Because Jinghua Parker starts from the procurement of high-quality raw
    materials, independent processing of spare parts, strict implementation
    of quality inspection system, traceable finishing process, perfect product
    display and after-sales service of online and offline process
    communication, the customer is the core only to build A good
    mechanical device.
    Are your parameters accurate?
    Jinghua Pike's flag is against the improper behavior of some friends to
    exaggerate the parameters of the virtual standard equipment!
    Jinghua Parker rejects the virtual standard, and the parameter data of
    the products sold are all measured real data.
    I am using it abroad, can the voltage be changed?
    Yes, Jinghua Parker equipment is sold at home and abroad, covering
    more than 70 countries on five continents.
    How long is the warranty?
    One year, our service policy is comprehensive quality assurance, lifelong service
