Product Introduction
——
- 产品描述
-

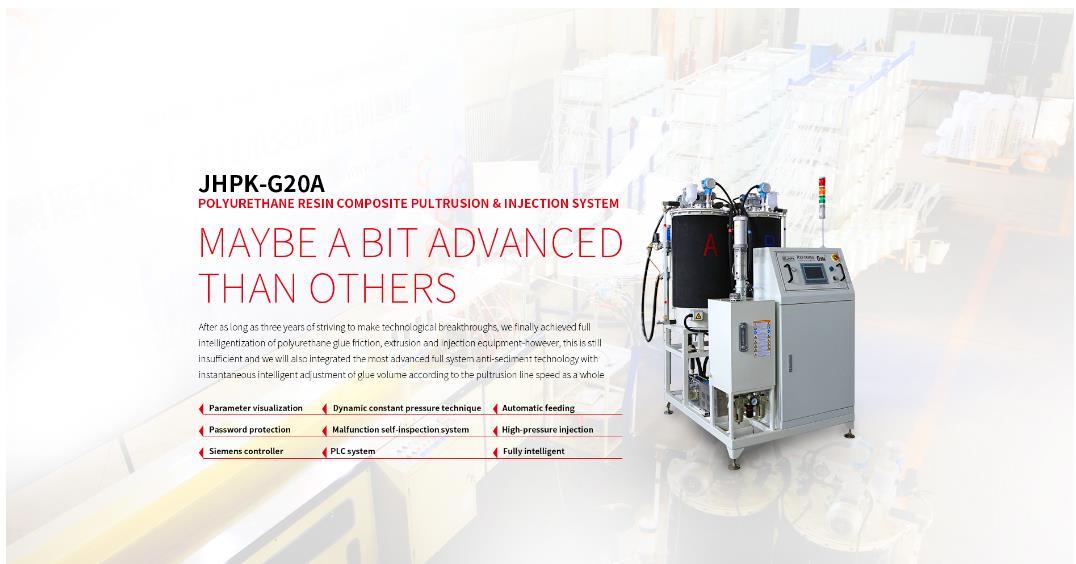

- Commodity name: JHPK-G20A Polyurethane resin composite injection system.
- Commodity ID: JHPK-G20
Maybe more a little bit advanced than others’.
polyurethane resin pultrusion and winding equipment
JHPK-G20A
Product Introduction
Our company has newly promoted JHPK-G20A complementary perfusion system for profile extruding production line. The system has various types according to different flow rate. It can be applied in the new type polyurethane profile extruding production which can completely replace the fiberglass extruding profile, including the polyurethane profile of window and door, polyurethane guide groove, polyurethane pipe and other molding products.
Having the complete independent intellectual property rights in design and with the patent protection horizontal pump system which has several types and forms of kinetic energy for customer’s selection, and several key techniques have applied national patents;
The system is especially designed and produced for polyurethane profile extruding and winding production line; electric driven, digital control, action sensitive, high accuracy;
Stable and reliable commutation, no pressure fluctuation, the pressure during during the raw material transmission is constant and stable; The application of the stepless high ratio can be realized, and the flow covering area is wide with high accuracy;
Every dynamic seal has abrasion compensation function which greatly enhanced the lifetime of the pump;
The application of the different sealing material and shaft barrel can meet the demand of the corrosion resistance and acid-alkaliresistance as well as pumping filling material’
The system can realize the constant monitoring for extruding speed and automatically adjust the output quantity of the raw material according to the speed changing.Therefore the constant alarm for overspeed during the production is realized;
Standard Configuration:
Main equipment: 1 set Material feeding pump or self feeding system: 1 group Ancillary perfusion gun: 1 piece Operation panel for gun: 1 piece Insulated pipe: 1 group Auxiliary piping and joints: 1 set Shipping Parameter:
Dimension: 1300mm×1200mm×2100mm Weight: 150Kg Technical Parameter
Ratio of raw materials: 1:1 Viscosity range: 200~1000CPS Output of raw materials: 2~9L/ min Heating power: 6000W*2 Hose heating power: 3200W Heating temperature range: 0℃~90℃ Power source: 3-phase 4-wires, 380V, 50Hz, or it can be customized Air Source: 0.5-0.8Mpa(70~120psi) ≥1.2m3/min Output pressure: 9~20 Mpa(1300~2900PSI) Max. length (optional): 90 meter Gun cleaning way: mechanical cleaning and air cleaning Custom parameters

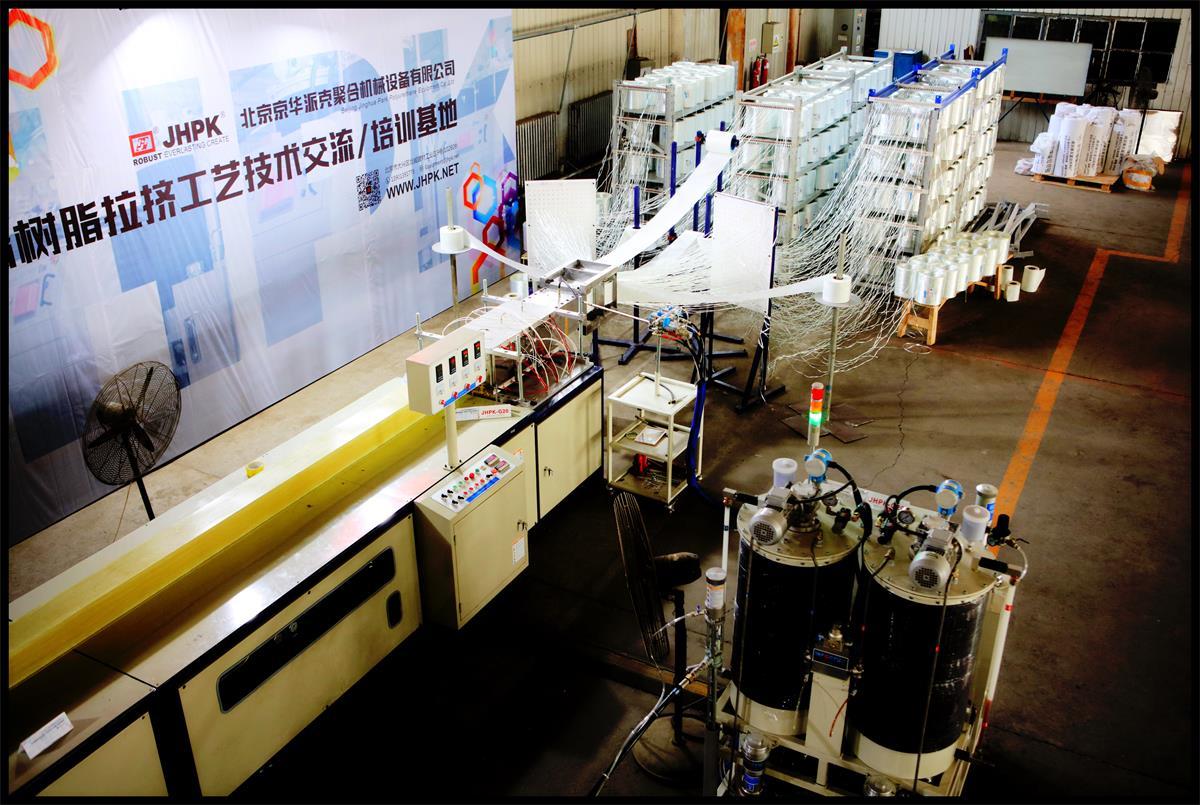

Process / case
Company Profile
JHPK company's main products are polyurethane spraying machine, polyurea spraying machine, polyurethane foaming machine, polyurethane pouring equipment, polyurethane spraying equipment, polyurethane foaming material, polyurethane black and white material, polyurethane resin pultrusion equipment, epoxy resin pultrusion equipment, unsaturated Resin pultrusion equipment, broken bridge aluminum doors and windows filling equipment, polyurethane packaging equipment, feed pump, polyurethane spray gun, polyurethane insulation pipeline, polyurethane road maintenance and lifting equipment, automatic spraying equipment, laboratory polyurethane equipment, tube-in-tube foaming equipment, intelligent two-component spraying equipment, etc.
FAQ
Are you a factory? How large is the area? headquartered in Beijing, the production center moved to Weinan New District in Hebei in 2018; the production center covers an area of 63,000 square meters, about 100 acres. Is your equipment imported? The mechanical equipment produced by Jinghua Parker is composed of spare parts processed by the processing center imported from the United States, zero-matched by the domestic brand processing center, and Siemens, Schneider and other internationally renowned brand accessories. It is a pure domestic equipment and a national brand. Overseas sales are an important channel for sales of Jinghua Parker products, so the appearance of the equipment is relatively good-looking and is in line with the world. Equipment? Is it installed at home? Free delivery, free on-site installation and commissioning training services for customers in China; free export packaging services for export equipment Why is the product of Jinghua Parker recognized by the market/word of mouth? Because Jinghua Parker starts from the procurement of high-quality raw、 materials, independent processing of spare parts, strict implementation of quality inspection system, traceable finishing process, perfect product display and after-sales service of online and offline process communication, the customer is the core only to build A good mechanical device. Are your parameters accurate? Jinghua Pike's flag is against the improper behavior of some friends to exaggerate the parameters of the virtual standard equipment! Jinghua Parker rejects the virtual standard, and the parameter data of the products sold are all measured real data. I am using it abroad, can the voltage be changed? Yes, Jinghua Parker equipment is sold at home and abroad, covering more than 70 countries on five continents. How long is the warranty? One year, our service policy is comprehensive quality assurance, lifelong service Contact information
